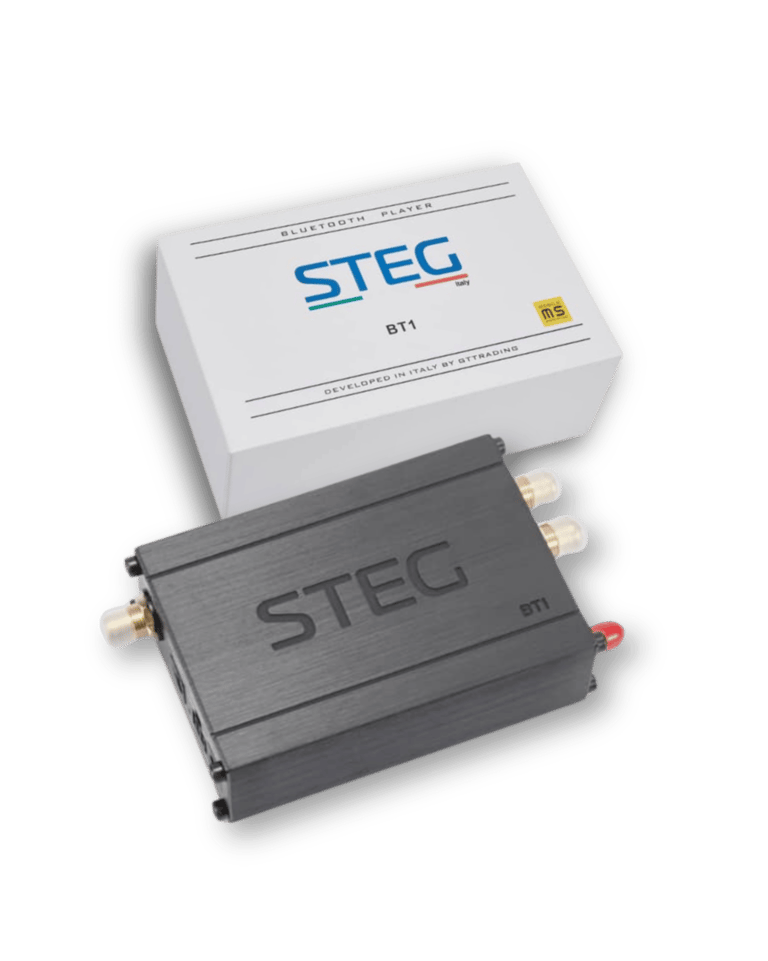

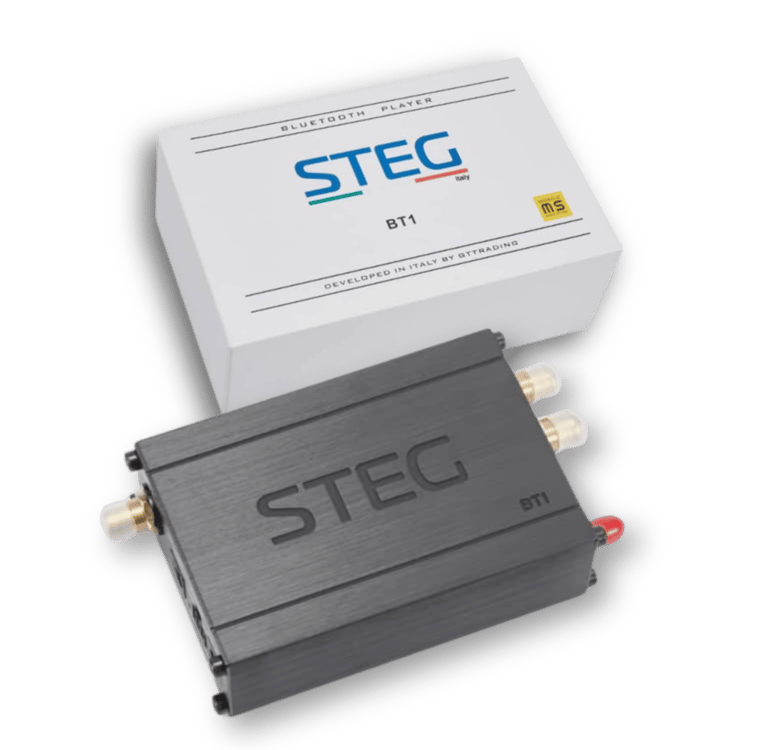

Bluetooth STEG BT-1

STEG Bluetooth Hi-Res Audio Module
"Premium Wireless Sound for Audiophiles"

Experience high-end wireless audio quality with the STEG Bluetooth Module, engineered for audiophiles who demand clarity, detail, and stability across every device. Powered by a high-performance chipset and supporting multiple Hi-Res codecs, this module delivers a listening experience far beyond standard Bluetooth.

Driven by the QCC5125 Bluetooth chipset and equipped with the ES9018K2M DAC, this module produces clean, precise, and natural sound. Combined with the OPA1612 op-amp, every musical nuance is reproduced with lifelike accuracy and superior detail.

Premium Audio Quality with High-End Components

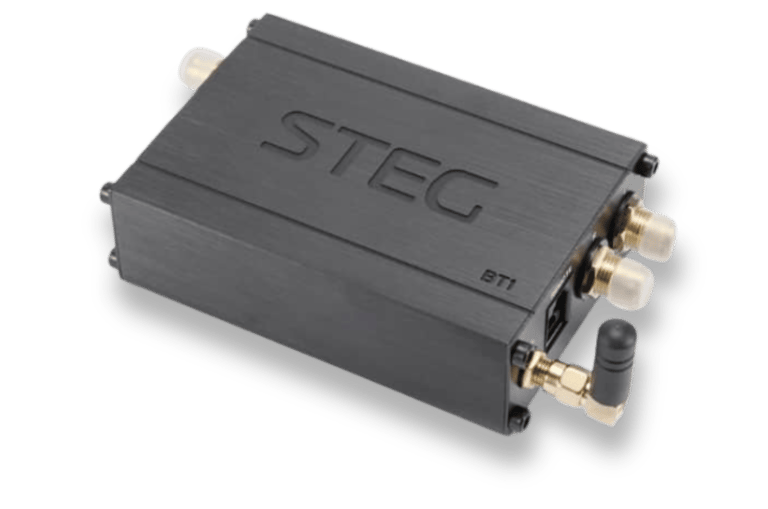

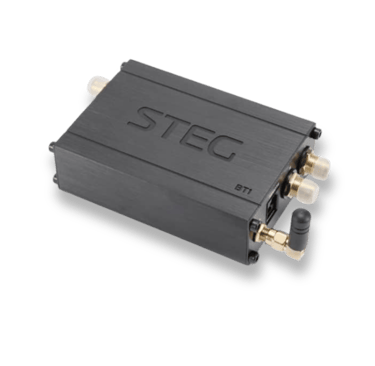

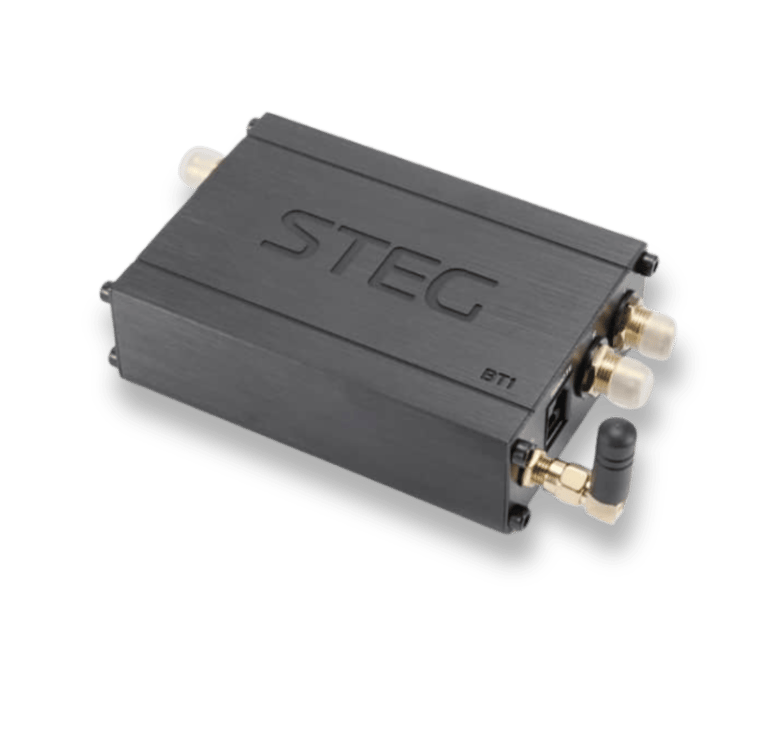

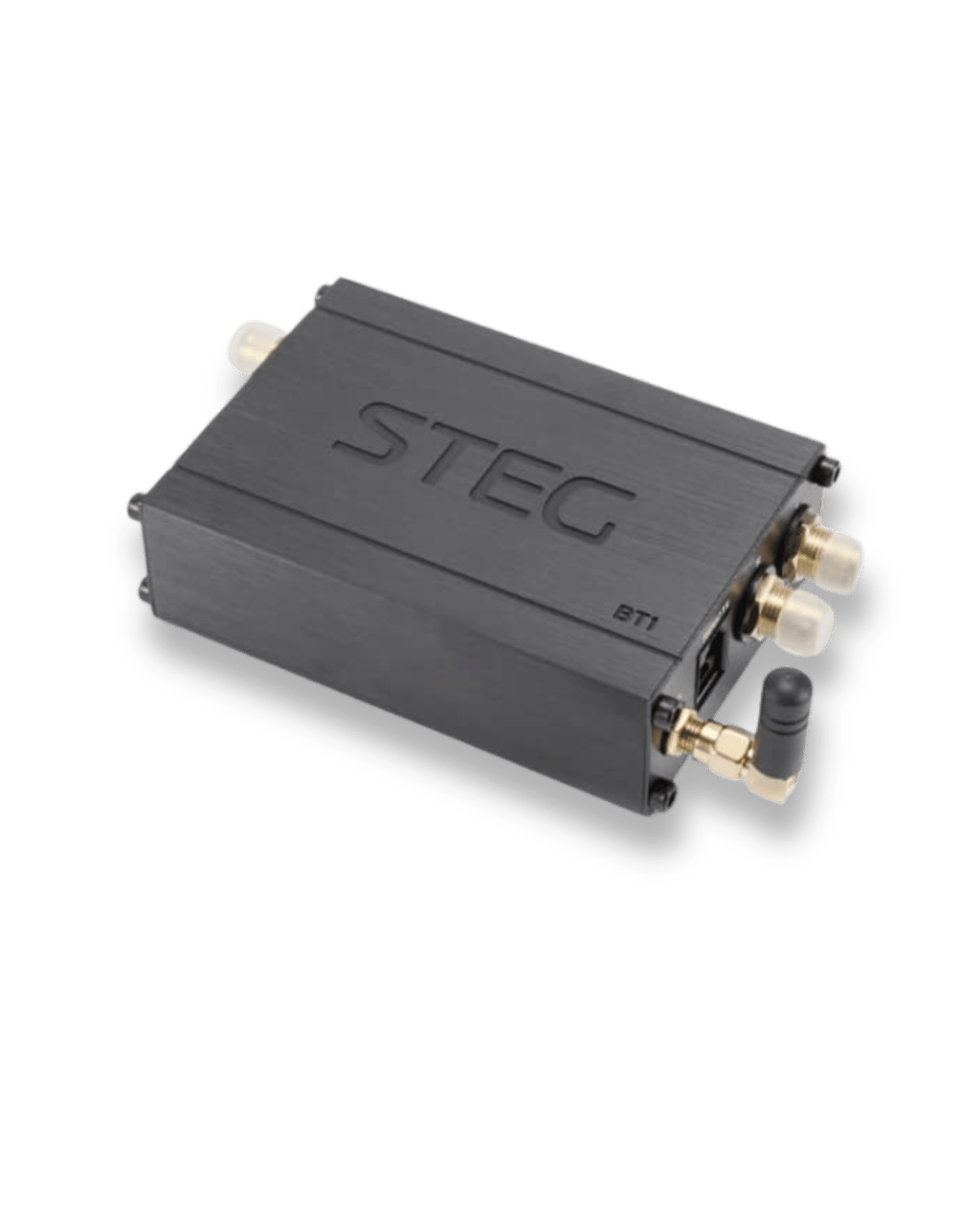

Compact Design with Flexible Power Input

Measuring just 130 × 68 × 29 mm, this compact module can fit easily into any installation. It supports a DC 9–18V power supply, making it suitable for both home and automotive use.

• Bluetooth Module: QCC5125

• Bluetooth Protocols: LDAC, aptX-HD, aptX-Adaptive, aptX-LL, aptX, AAC, SBC

• Sampling Rate: 96kHz

• Bit Depth: 24-bit (max)

• Bluetooth Version: 5.1

• Transmission Distance: <15 meters

• Decoder Chip: ES9018K2M

• OPA Chip: OPA1612

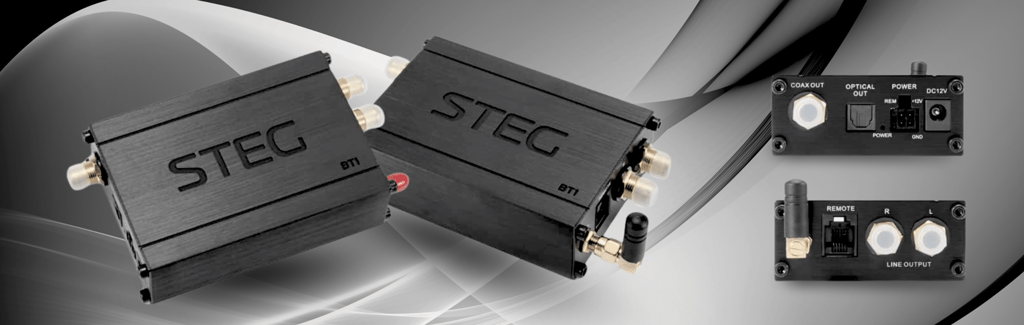

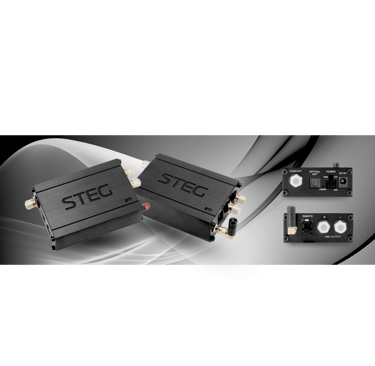

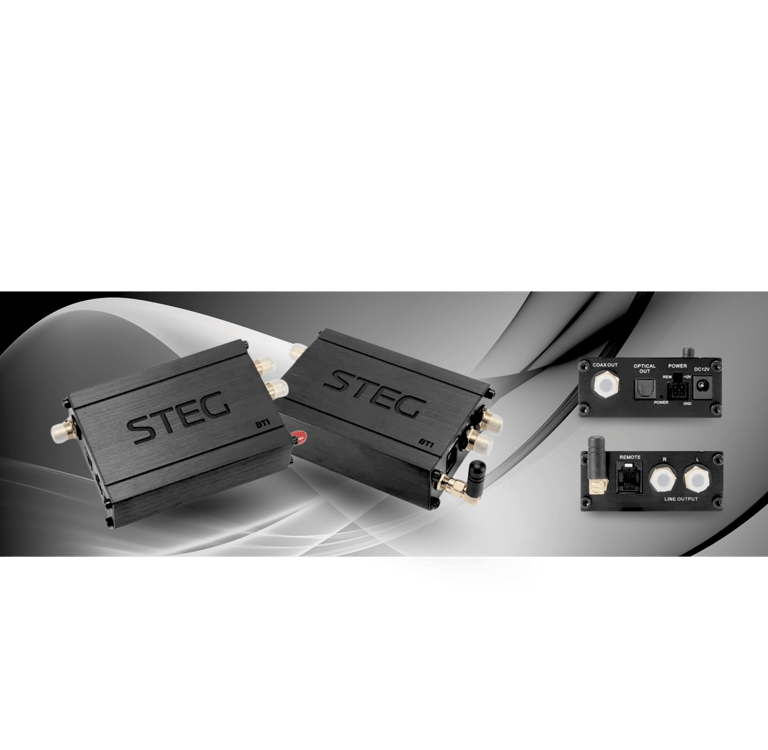

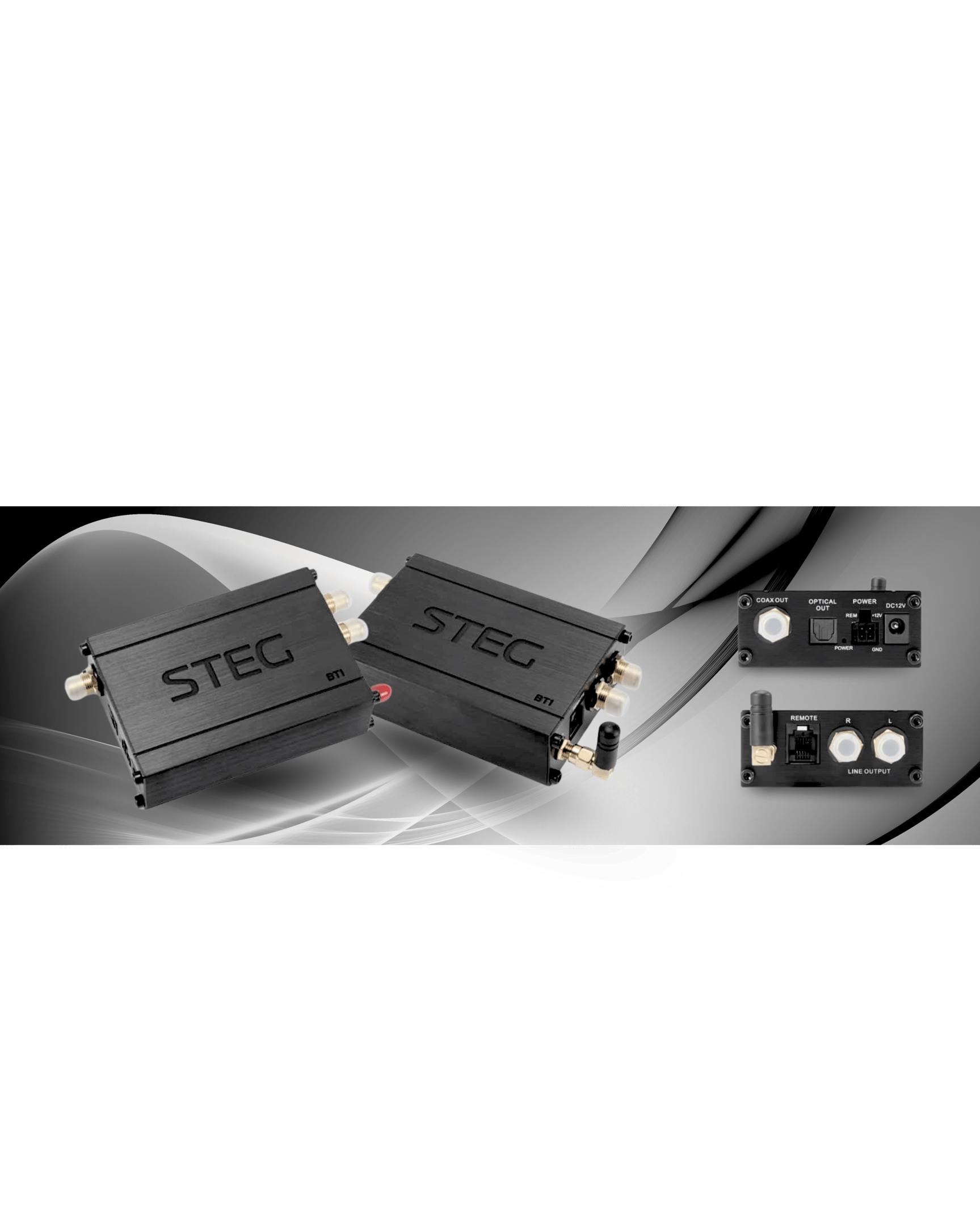

• Output Ports: Optical, Coaxial, RCA

• Power Supply: DC 9–18V

• Product Size: 130 × 68 × 29 mm

• Package Size: 140 × 94 × 54 mm

• Product Weight: 0.16 kg

• Package Weight: 0.27 kg
