ZLS-HD5.4

Features:

• Flash-programmable platform for flexible development

• Support for digital assistants

• Snapdragon Sound for lossless audio and robust

• low-latency streaming

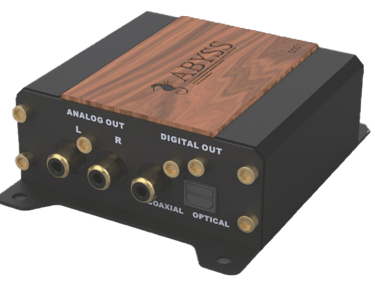

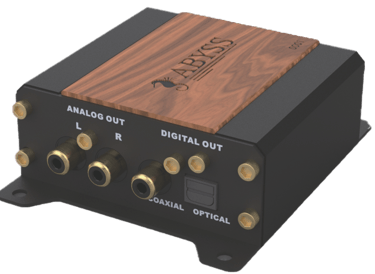

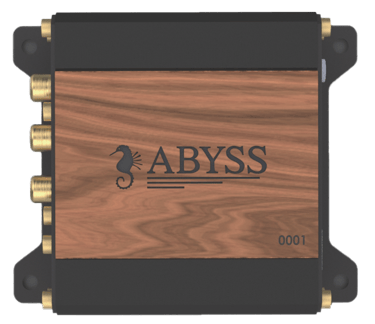

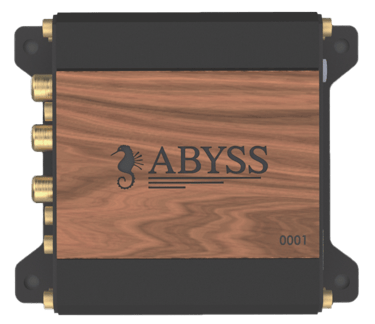

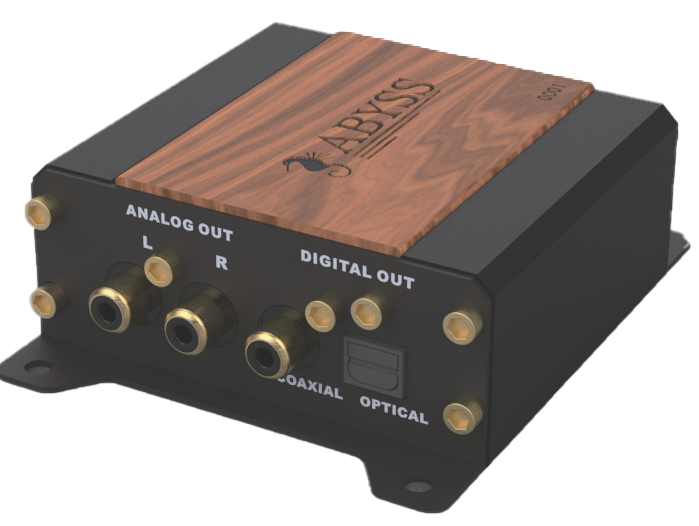

HIGH RESOLUTION BLUE TOOTH MODULE

Experience a new level of audio excellence with the. Revolutionary our bluetooth module.

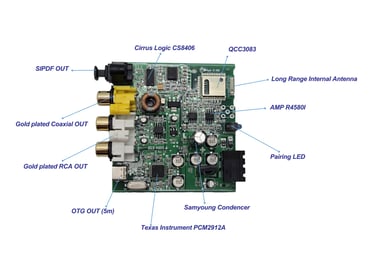

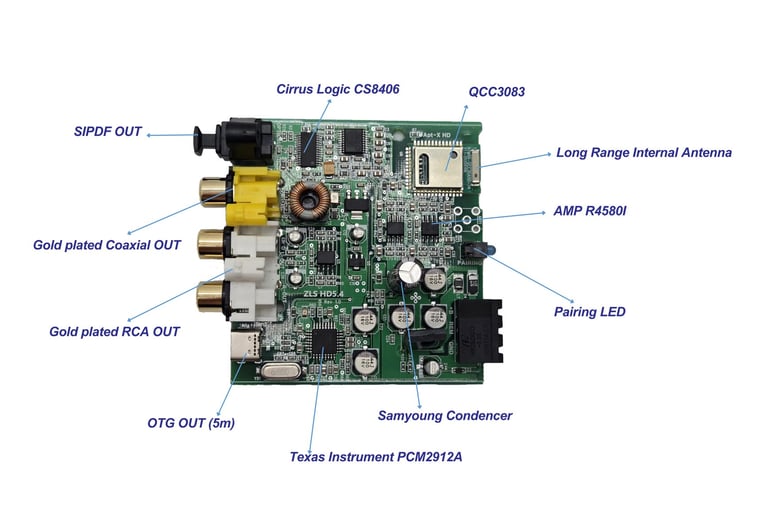

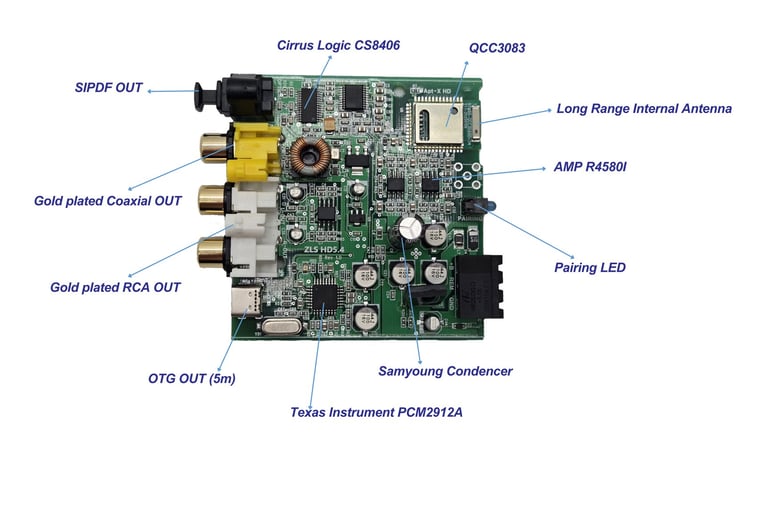

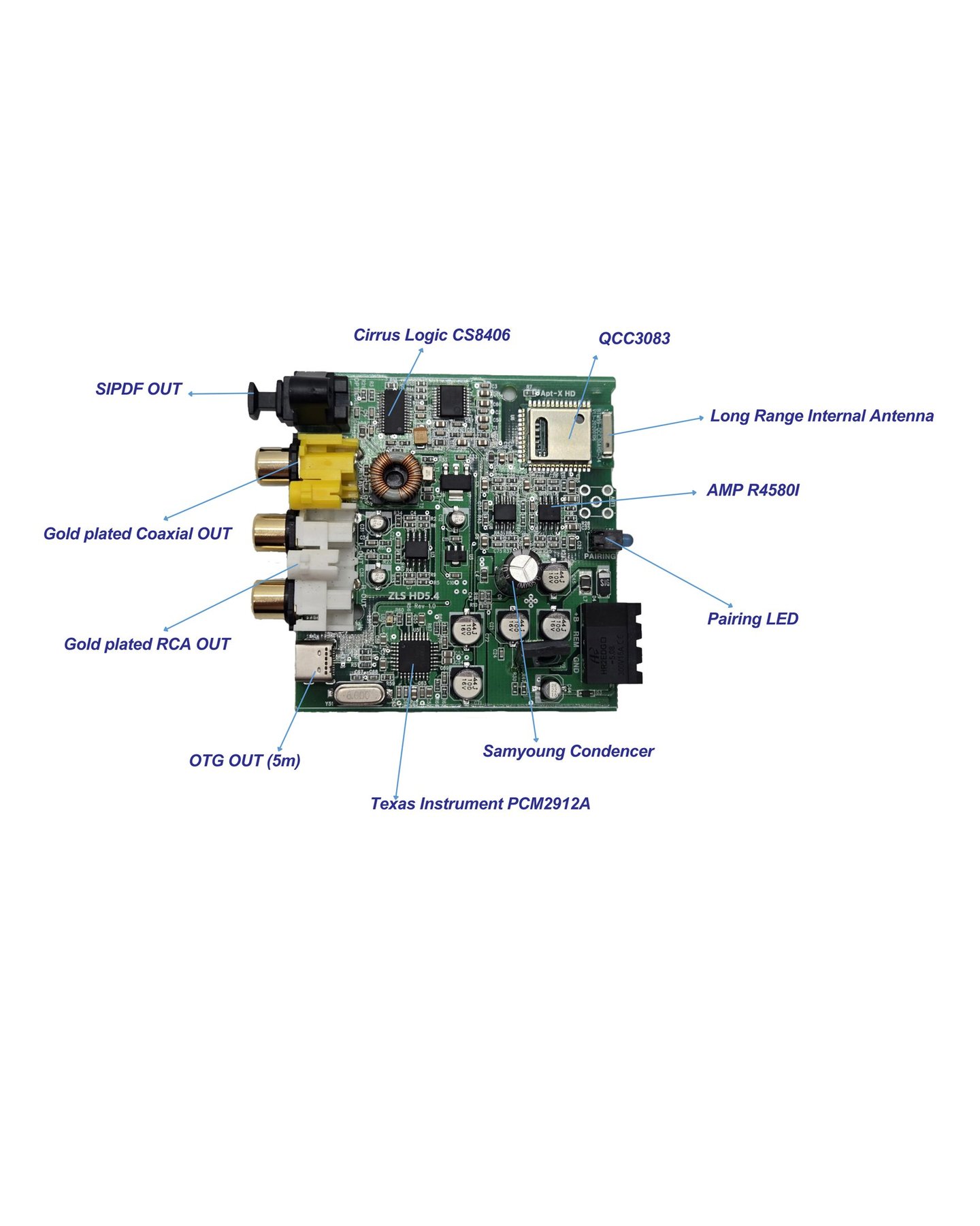

• Bluetooth Chipset : Dual Core QCC3083

• Bluetooth Version : Bluetooth 5.3

• Service Voltage : 3.0 V ~ 3.6 V

• Bluetooth Decoding : SBC, AAC, AptX,

• AptX HD, AptX LL, AptX LL, AptX Adaptive, LC3

• Cirrus Logic CS8406

• Sampling Rate : 32 kHz ~ 192 kHz

• Resolution : 16 ~ 24 bit

• Function : AES3 / S/PDIF / IEC60958

• Output Driver : low-skew differential line driver

• (supports 110 Ω AES3 or 75 Ω S/PDIF)

• Current Consumption : ≈ 15 mA

• Texas Instrument PCM2912

• Type : USB Audio Codec (ADC + DAC + USB interface)

• ADC / DAC Resolution : 16 bit

• Sampling Rate : 32 kHz, 44.1 kHz, 48 kHz

• SNR : (ADC) ~ 89dB (DAC) ~ 96dB

• THD : 0.01%
